Product Specification
| VOICE COIL MOTOR COMPONMENT | Product specifications |
|---|---|
 |
Hard disk motor bracket: The voice coil motor (VCM) is mainly used as the drive motor of the magnetic head and the key part of the hard disk to read data. Its main function is to convert the disk information stored on the disk into electrical signals for outward transmission. |
 |

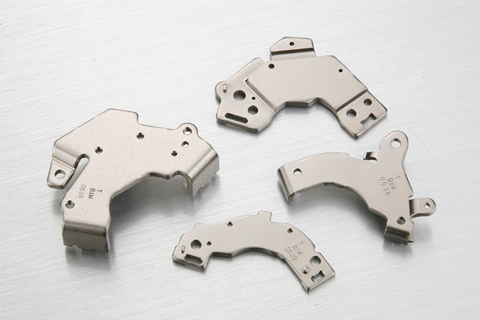

2.5 inches and 3.5-inch hard disk drive voice coil motor Material: Carbon Steel or equivalent material Material Size: 2.5 " &3.5", plate thickness between 0.5-5mm Equipment: 120t-400t Features: punching forging composite forming |
 |
|
 |
|
 |
Structure diagram of voice coil motor bracket of hard disk drive |
 |

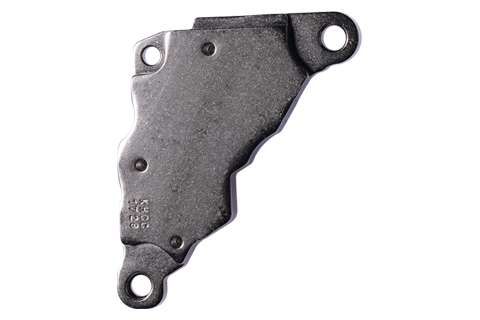

3.5-inch enterprise hard disk drive voice coil motor bracket Material: Carbon Steel or equivalent Material Size: 3.5-inch model, thickness between 3-5mm Equipment: 300t-400t Features: thick plate punching and forging composite forming, including precise hole diameter control, strict plane requirements, and complex countersunk hole design. |
 |
