Product Specification
| Transmission parking gear and shift mechanism | Specification |
|---|---|
 |
Transmission parking system parts - P gear parking pawl fixing bracket: For Fineblanking parts, the coaxiality of upper and lower holes after assembly and welding is within φ 0.04 |
 |
Transmission parking system parts - P parking pawl: The thickest parking pawl of front fine blanking currently, which is 13.6mm. The locking pawl is combined with the teeth of the parking brake wheel to lock the final drive. When the wheels need to be adjusted and the axle part is raised, the parking brake is used to prevent the partially raised front axle from rotating. |
 |
MQ200 Manual Transmission Fork System Parts - 1/2 Slide Plate MQ200 is a gearbox often used by Volkswagen. According to the naming method of Volkswagen, M is manual means, Q means transverse, and 200/250 (N.m) represents the maximum torque that the gearbox can transmit. |
 |
MQ200 Manual Transmission Fork System Parts - Reverse Slide Plate MQ200 is a gearbox which is often used by Volkswagen. According to the naming method of Volkswagen, M represents manual, Q represents transverse, and 200/250 (N.m) represents the maximum torque that the gearbox can transmit. |
 |

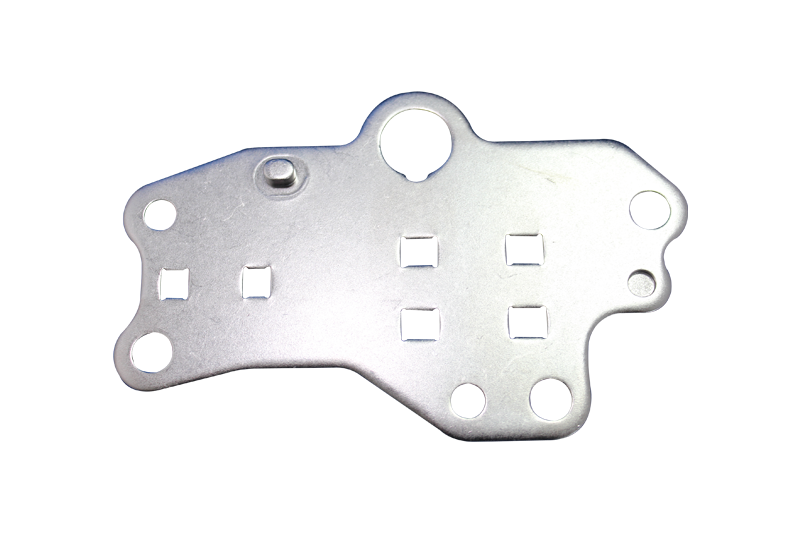

DQ200 seven speed double clutch transmission parking system parts - support plate DQ200 is a kind of Volkswagen 7-speed dual clutch transmission, which can withstand a maximum torque of 250NM, and is mainly equipped with low and medium displacement vehicles. |
 |

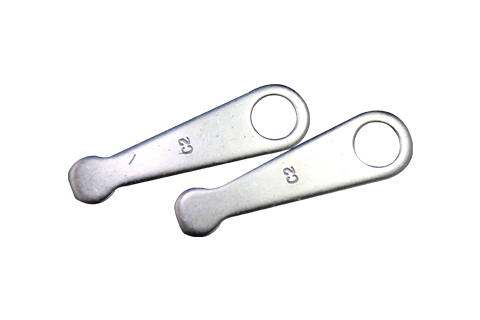

MQ200 Manual Transmission Fork System Parts - 5/6 Shift Lever MQ200 is a gearbox generally used by Volkswagen. According to the naming method of Volkswagen, means manual, Q represents transverse, and 200/250 (N.m) means the maximum torque that the gearbox can transmit. |
 |
MQ200 Manual Transmission Fork System Parts - 5th/6th Slide Plate MQ200 is a gearbox often used by Volkswagen. According to the naming method of Volkswagen, M represents manual, Q represents transverse, and 200/250 (N.m) represents the maximum torque that the gearbox can transmit |
 |
DQ200 seven speed double clutch transmission parking system parts - parking gear & parking pawl The DQ200 is a kind of Volkswagen 7-speed dual clutch transmission, which can withstand a maximum torque of 250NM, mainly used in low and medium displacement vehicles. |
 |

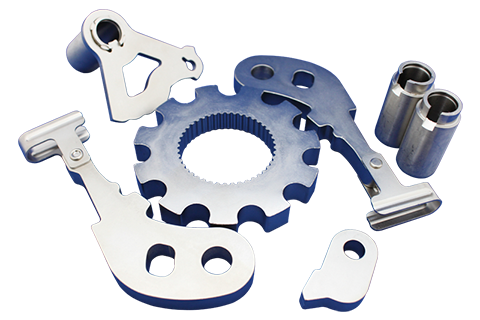

Six speed double clutch transmission parking system parts - parking gear, parking pawl, support, sector plate assembly. The six speed double clutch transmission can withstand a maximum torque of 190NM. |
 |
Six speed double clutch transmission parking system parts - parking gear, parking pawl, support, sector plate assembly. The six speed double clutch transmission can withstand a maximum torque of 190NM. |
 |
Dual clutch transmission parking system parts - parking gear, parking pawl Use the pawl to hold the parking gear so that it cannot run, thus stopping the gear set, transmission shaft and wheels. Main processes: fine blanking (precision stamping), heat treatment. |
 |
Dual clutch transmission parking system parts - parking pawl A structural part used to clamp the ratchet wheel and make the ratchet wheel move in one direction and lock in reverse direction. Main manufacturing processes: fine blanking , heat treatment, press riveting. |
 |
Dual clutch transmission parking system parts - sector plate assembly The locating pin with spring is used to cooperate with the sector plate to realize the shift function Main processes: fine blanking (precision stamping), heat treatment, high-frequency quenching, press riveting. |
 |
MQ200 Manual Transmission Fork System Parts DQ200 seven speed double clutch transmission parking system parts |
