Product Specification

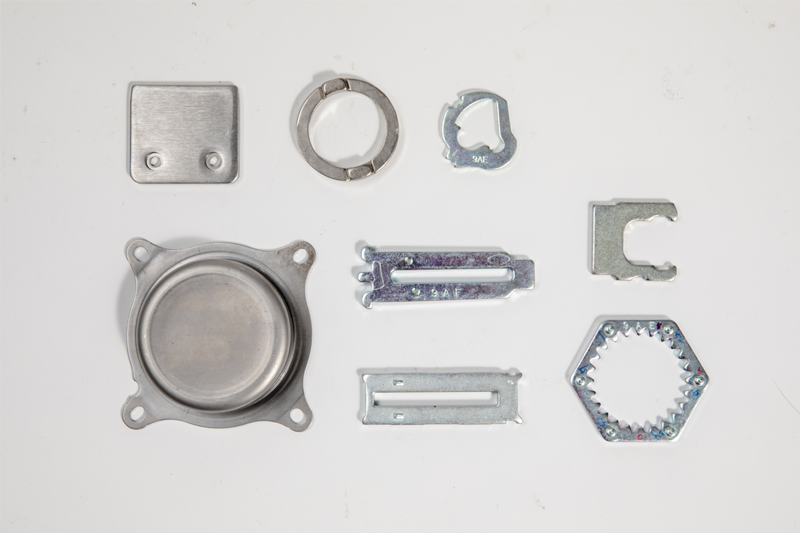

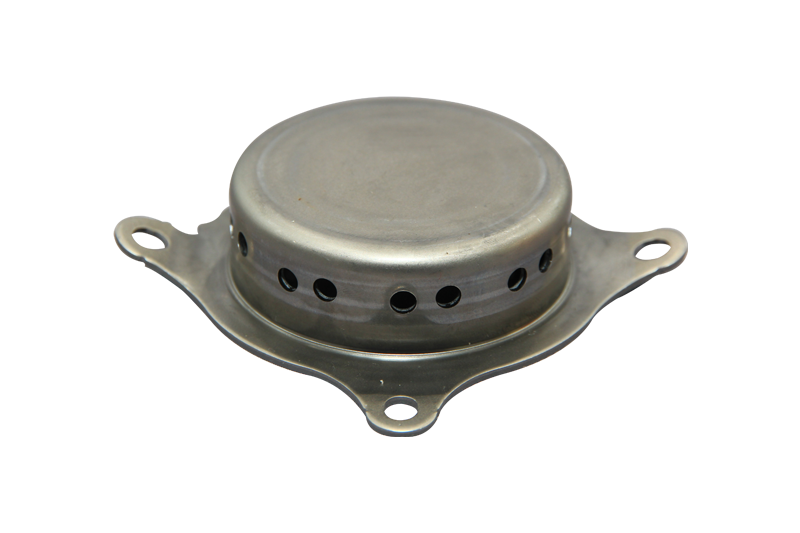

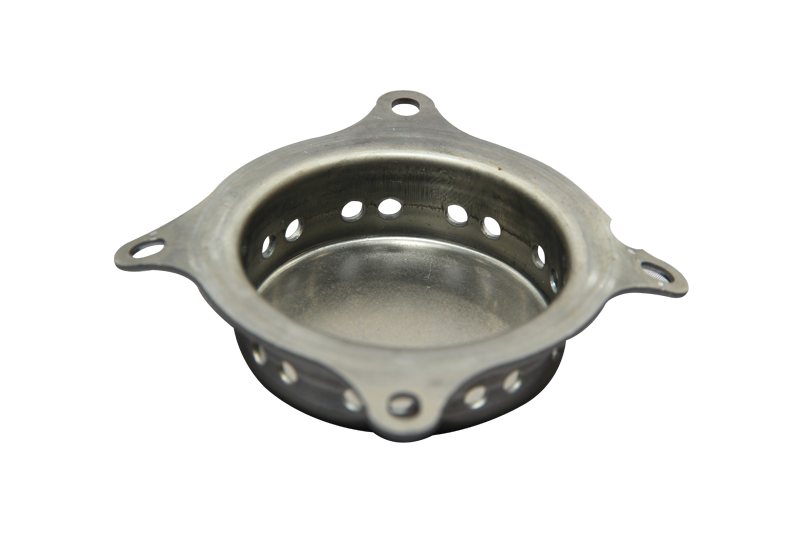

| Seat belt and Airbage | Specification |
|---|---|
 |

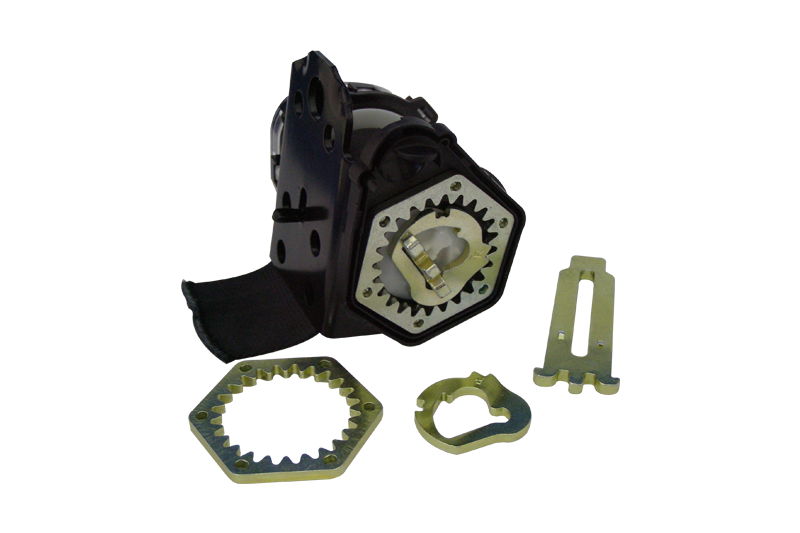

Safety belt retractor: The retractor is connected with the safety belt through the internal reel, and provides the reel with the torque of reverse rotation through the internal spring, which is also the source of resistance when we gently pull the safety belt. The locking resistance during jerking is from the locking mechanism inside the retractor. |
 |

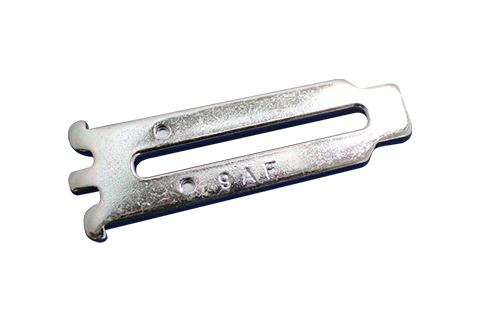

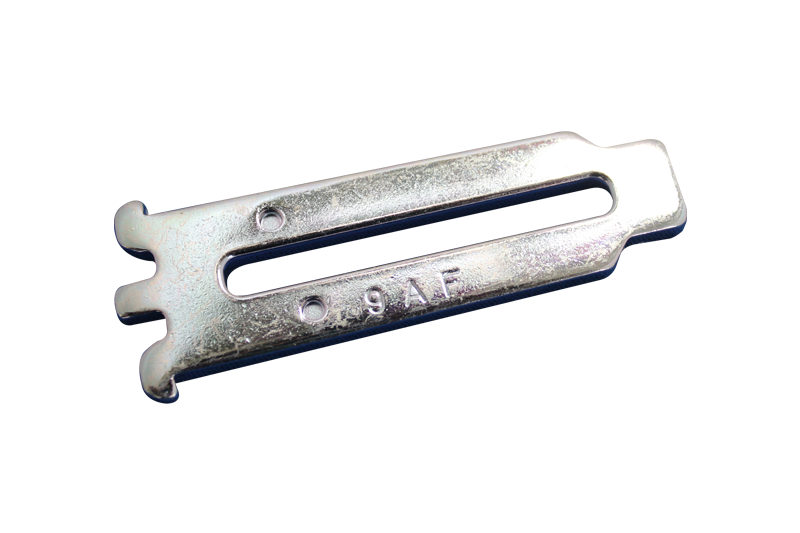

Metal reel: Material: S45C Size: 67x22x5mmT Equipment: 650t fine blanking machine Features: Fine blanking progressive die forming, the shear surface is required to be 90% ↑ |
 |

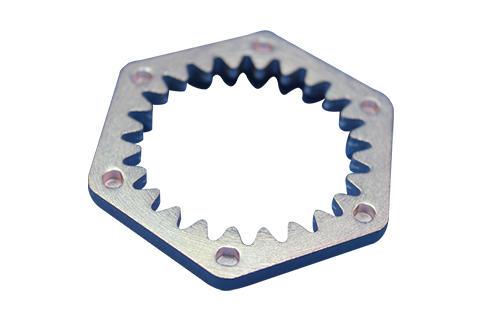

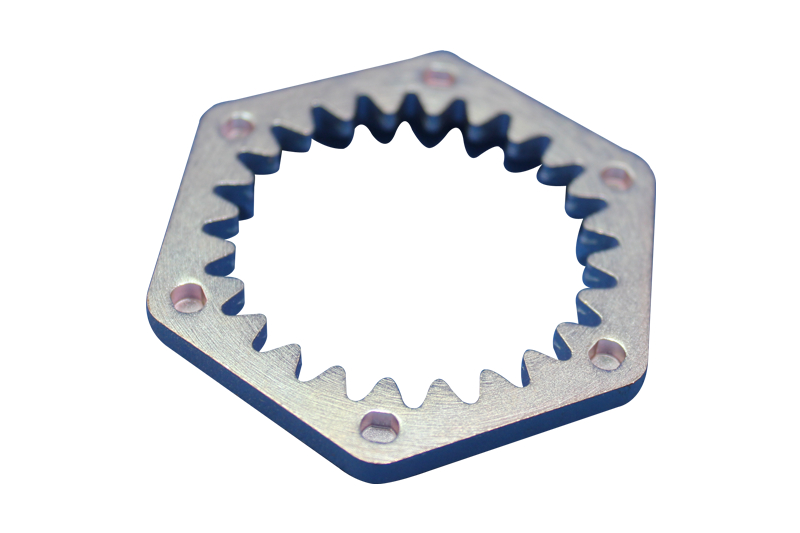

Toothed-wheel ratchet: Material: S45C Size: 51x51x4mmT Equipment: 650t fine blanking machine Features: Fine blanking vertical progressive die forming, the shear surface is required to be 90% ↑ |
 |

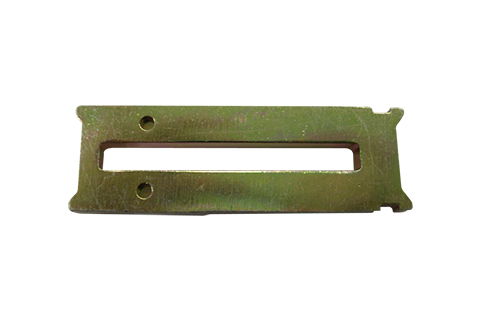

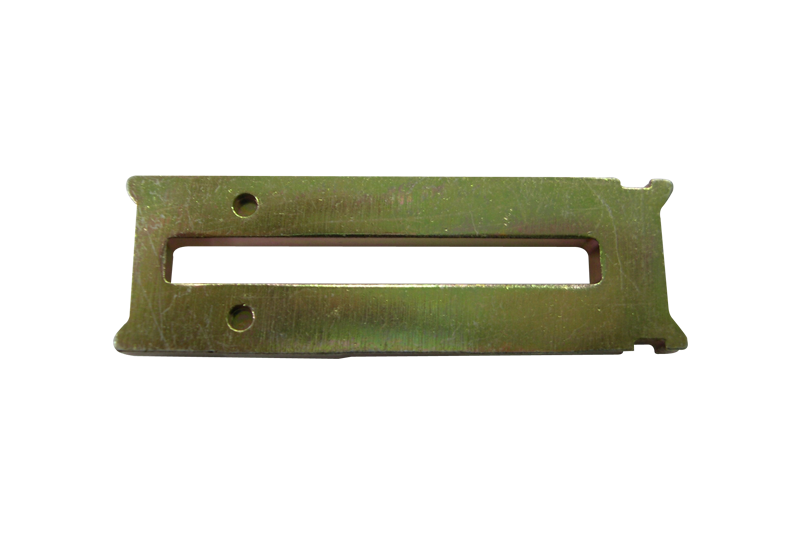

Metal reel: Material: S45C Size: 74x27x4.5mmT Features: Fine blanking progressive die forming, the shear surface is required to be 90% ↑ |
