Product Specification
| Motorcycle components | Specification |
|---|---|
 |

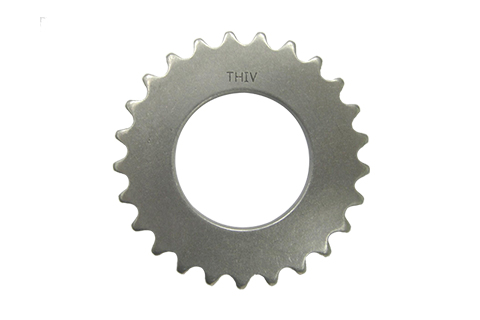

Cam gear plate Material: SPCC Size: Ф45x2.8mmT Equipment: 120t precision punch Features: Fine blanking chain wheel composite forming, the shear surface is required to be 100% ↑ |
 |
Camshaft sprocket Material: SPCC Size: Ф45x2.8mmT Equipment: 120t precision punch Features: Fine blanking chain wheel composite forming, the shear surface is required to be 100% ↑↑ |
 |
Impact plate: It is used on the nail gun to strike on the nails and hit the nails out of the objects. Material: S50C Size: 42x17x1.6mmT Equipment: 250t fine blanking machine Features: Fine blanking and continuous blanking forming |
 |

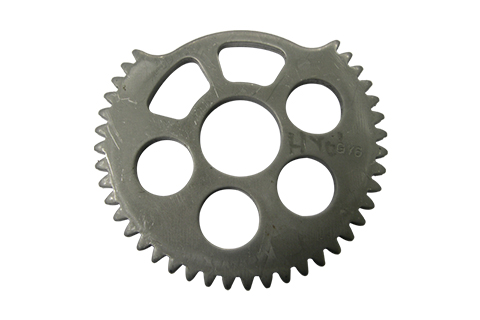

Starter gear: An electric motor that uses gear transmission to crank or start an engine. Material: SPHD Size: Ф100x4.5mmT Equipment: 250t fine blanking machine Features: Fine blanking compound blanking forming, the shear surface is required to be 100% ↑ |
 |
Belt drive gear: It is a tensioned (annular) belt that is sleeved on the pulley of two transmission shafts. It transmits the power of one shaft to the other by relying on the friction force generated when the belt and pulley are tensioned. Material: SPHD Size: Ф120x9.5mmH Equipment: 250t fine blanking machine Features: Fine blanking tooth type composite blanking forming, the shear surface is required to be 100% ↑ |
 |
Belt It is a tensioned (annular) belt that is sleeved on the pulley of two transmission shafts. It transmits the power of one shaft to the other by relying on the friction force generated when the belt and pulley are tensioned. Material: S45C Size: Ф118x13.5mmH Equipment: 250t fine blanking machine Features: Fine blanking tooth type composite blanking forming, the shear surface is required to be 100% ↑ |
 |
Motorcycle transmission parts - ring gear Material: S45C Size: Ф142x5mmT Equipment: 650t fine blanking machine Features: Fine blanking tooth type composite blanking forming, the shear surface is required to be 100% ↑ |
 |
Cam gear plate Material: SPCC Size: Ф52x2.8mmT Equipment: 120t fine blanking machine Features: Compound forming of fine blanking roller |
 |

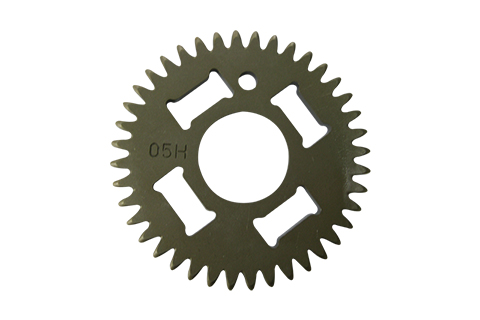

Drive gear Material: SCM415 Size: Ф84x4mmT Equipment: 650t fine blanking machine Features: Fine blanking and forming, gear accuracy JIS 5, shear surface requirement 90% ↑ |
 |
Drive gear Material: SCM415 Size: Ф75x4mmT Equipment: 650t fine blanking machine Features: Fine blanking and forming |
